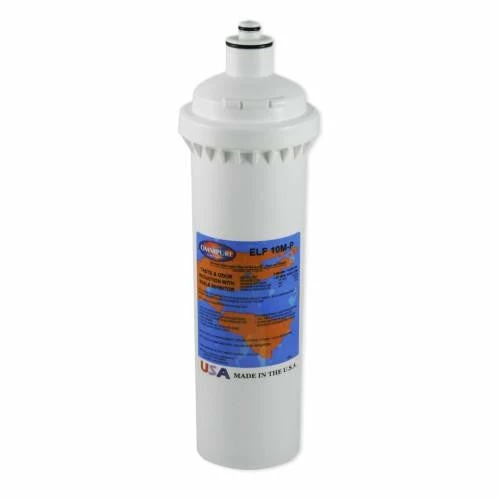

OMNIPURE ELF Filter With Scale Inhibitor

OMNIPURE ELF Filter with Scale Inhibitor

The ELF-Series from Omnipure. Cost-effective, point-of-use water filtration for high volume applications.

Suitable For: The ELF-Series of filters from Omnipure was designed specifically for the higher volume requirements for the food service industry. In contrast to what the name implies, the new ELF?s (Extra-Large Format) capacity of over 10,000 gallons (37,800 litres) and flow rates of up to approx 5.7 litres/minute, make it ideal for use in restaurants, cafes, coffee shops and vending machines.

This Filter Replaces: Boema XQS-10, the WFS QC3223P(Water Filter Services) Standard Maxiflow Filter,the Aqua Safe QC350, CD100 cartridge for CD10, CD40 Systems. Also suits ICEU series including ICEU-305 & ICEU-805, as well as the Maxiflow Filter Cartridge QC3533CCW, and QC6533PGB.  Suitable as well for the Hoshizaki HLFC100 Sediment Chlorine Scale 10″ filter.

 About the Omnipure EFL-10M-P: The ELF-Series is engineered in a two-piece configuration with a permanent head and a bayonet style replaceable polypropylene body. This configuration helps to reduce cost as simple body replacement is cheaper than replacing the entire filter apparatus. Replacement is fast and easy. The body is quickly detached from the head with the twist of a wrist, no tool required.

All Omnipure filter bodies are made with virgin, high-impact polypropylene which is especially ideal for use in applications where sanitary conditions are required. All materials of construction are NSF and/or FDA approved.

Filter Life:  Maximum 6-month service life

Technical Specifications: Engineered and manufactured to the same exacting standards as all Omnipure filters, the ELF-Series? expanded volume and higher flow rates are ideal for commercial applications such as equipment protection and water polishing. Each filter series is tested with a maximum pressure of 125 psi and a maximum temperature of 38 C.

Features and Benefits of the ELF-Series

• Better tasting water
• Protect equipment from hard water
• Lead & cyst specific media available
• Large – 8cm wide x 32.3cm length (3.” x 12.7″)
• Capacities of up to 37,800 litres
• Flow rates of up to 5.7 litres/min.
• Two-piece bayonet-style replaceable body and permanent head
• Best cost-to-performance ratio in the industry

Block GAC 10m with Scale Inhibitor

• GAC with polyphosphate
• Taste, odour & chlorine reduction
• Scale inhibitor
• Ideal for equipment protection

MODEL NUMBER	BODY LENGTH	SERVICE LIFE	FLOW RATE
ELF-10M-P	12.7″	37800 LITRES	1.5 GPM
ELF-XL-10M-P	17.5″	56700 LITRES	2.0 GPM
